Coffee Bag Vent Valve Explained: Why Coffee Needs 0 Vent 1

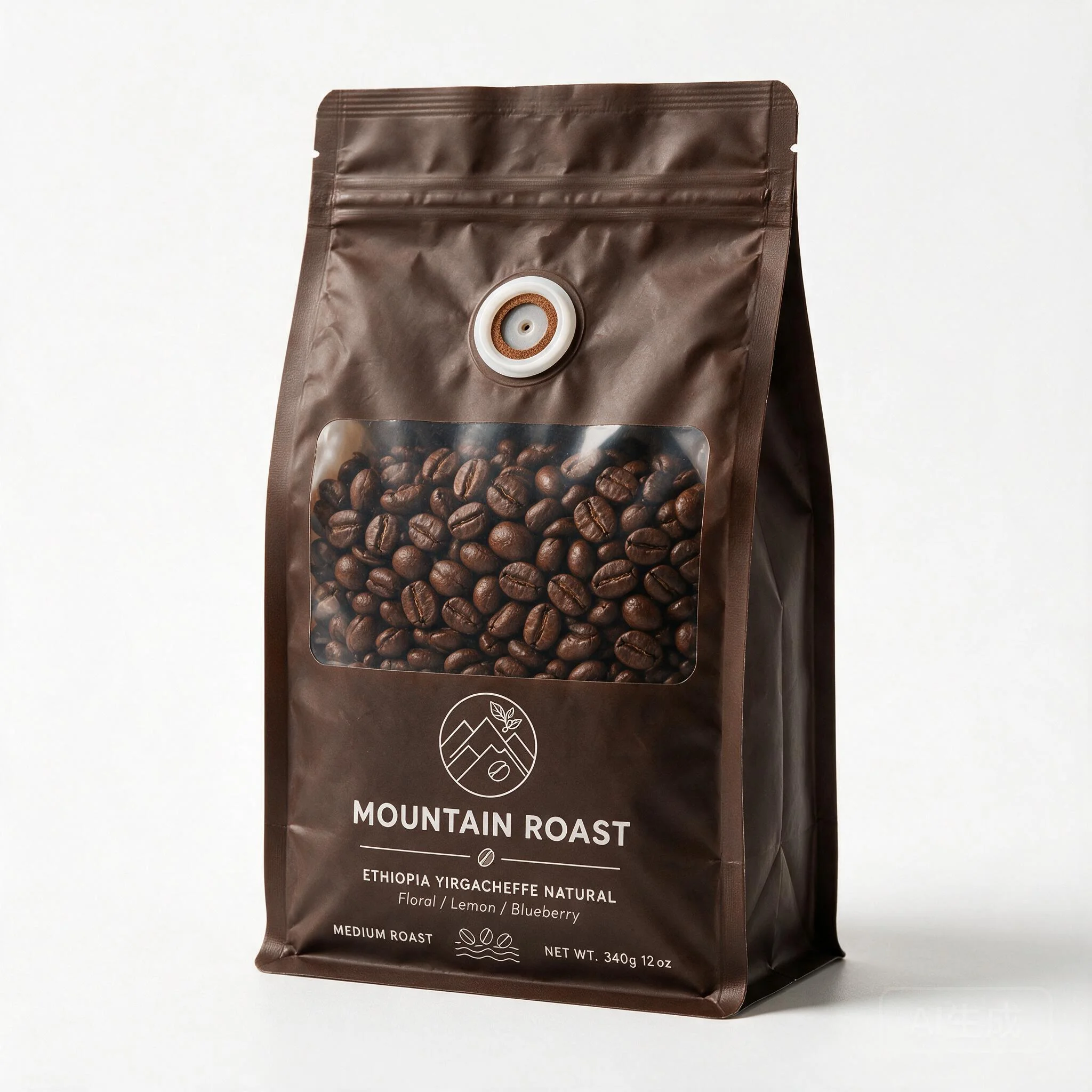

When buying coffee beans or coffee powder, you may notice a small circular device on the packaging bag — some are in the center of the bag, while others are on the side. This small device is called the coffee bag vent valve. Why is there a valve on coffee bags? Can it be omitted? Today, we’ll talk about this small but essential packaging accessory that often goes unnoticed.
What is a coffee bag vent valve?
Coffee bag vent valve, also known as a one-way vent valve, one-way breathable valve, or degassing valve, is a small plastic device installed on a coffee packaging bag. It allows gases inside the bag to be released unidirectionally to the outside while preventing external air (oxygen, moisture) from entering the bag.
The core structure of an exhaust valve is a one-way diaphragm: when the internal air pressure increases, the diaphragm opens to release gas; when the external air pressure is higher than the internal pressure, the diaphragm tightly closes, preventing external air from entering. This design appears simple but is highly precise — a qualified exhaust valve typically maintains an opening pressure of 0.5-2.0 kPa, ensuring smooth exhaust while preventing leakage during transportation due to vibrations.
Why is vacuum required for coffee?
Coffee beans produce a significant amount of carbon dioxide (CO₂) during the roasting process. After roasting, coffee beans continue to release CO₂ — this process is called degassing. Immediately after roasting, the internal CO₂ content of coffee beans can be more than twice their weight. If these beans are directly sealed in an airtight bag, the internal pressure will rise rapidly, causing the bag to swell like a balloon, and in severe cases, the bag may even burst.
However, coffee cannot do without sealed packaging: oxygen is the biggest enemy of coffee flavor. Once the oils and aromatic compounds in coffee come into contact with oxygen, they oxidize and deteriorate, leading to the loss of aroma and the development of stale, off-flavors. This creates a contradiction—both CO₂ needs to be released and oxygen must be kept out. The vent valve is the ideal solution to this dilemma.
The working principle of an exhaust valve
The coffee bag vent valve operates in three states:
- Exhaust ConditionThe CO₂ released from the coffee beans increases the pressure inside the bag. When the pressure reaches the opening threshold of the vent valve, the silicone diaphragm inside the valve is pushed up, allowing CO₂ to escape through the micropores. The hissing sound you hear when squeezing the coffee bag is the sound of the vent valve in operation.
- Closed stateOnce the internal pressure inside the bag drops below the threshold, the diaphragm returns to its original position naturally, closing the exhaust valve. At this point, the packaging is completely sealed.
- Anti-siphon stateIf the external temperature drops or the package is compressed and then rebounds, creating a negative pressure inside the bag, the diaphragm inside the valve will tightly adhere to the valve seat, preventing external air from passing through. This is the key difference between a one-way exhaust valve and a regular breathable hole.
A high-quality exhaust valve can withstand 500 to 1000 opening and closing cycles without failure, ensuring normal operation throughout the coffee’s shelf life.
What happens if there is no exhaust valve?
If coffee packaging bags do not include a vent valve, the following issues may arise:
- Bag rupture riskFreshly roasted coffee beans release enough CO₂ within 48 hours to inflate a standard aluminum foil bag to its maximum capacity. Once the packaging ruptures, the entire batch becomes unsalvageable.
- Flavor LossSome manufacturers punch several micro-holes into the bag for ventilation, but this allows oxygen to enter, causing the coffee flavor to deteriorate quickly.
- Packaging deformationEven in the case of unexploded bags, continuous high pressure can cause the bags to swell and deform, significantly affecting shelf display appearance.
Applications of the exhaust valve
The exhaust valve is mainly applied in the following product categories:
- Coffee Bean BagThe most common application scenario: all coffee bean packaging that requires maintaining freshness should be equipped with a vent valve.
- Coffee Powder BagCoffee powder has a larger surface area, leading to faster oxidation, so an exhaust valve is still necessary.
- Fermented Food PackagingKorean kimchi, sauerkraut, and other fermented bean products also produce gas during the fermentation process. Some high-end packaging also includes a vent valve.
- Nut PackagingSome nuts (such as walnuts and peanuts) will also slowly release gas during storage, but the scenario where an exhaust valve is used is less common.
Selection Points for Exhaust Valves
When selecting or customizing coffee bags with a vent valve, pay attention to the following points:
- MaterialThe valve body is typically made of PE or PP material. For food-grade requirements — it must comply with food contact material standards and must not transfer harmful substances into the coffee. For the characteristics of different packaging materials, please refer to the following.Plastic Packaging Bag Material Selection Guide。
- Air permeabilityDifferent coffee beans have different CO₂ release rates (dark roast releases faster than light roast), requiring matching with appropriate air permeability. The standard exhaust valve has an air permeability of approximately 50-200 ml per day.
- Installation MethodThe exhaust valve is available in two types: heat-sealed and adhesive-backed. The heat-sealed type is bonded to the bag film through high-temperature pressing, offering better sealing performance. The adhesive-backed type is attached to the inner wall of the bag, making it easier to install, though its sealing performance is slightly inferior.
- LocationThe vent valve is typically installed in the upper middle part of the bag surface, allowing consumers to feel the venting effect when squeezing the bag. Some brands install the vent valve on the side or bottom of the bag to maintain the integrity of the front design.
Summary
Although the coffee bag vent is a small and seemingly insignificant accessory, it plays an irreplaceable role in coffee packaging. It resolves the core contradiction between coffee degassing and preservation—removing CO₂ while blocking oxygen, ensuring the coffee maintains its optimal flavor from roasting to consumption. For coffee brands, selecting the right quality vent and packaging bag is an essential step in guaranteeing product quality.
